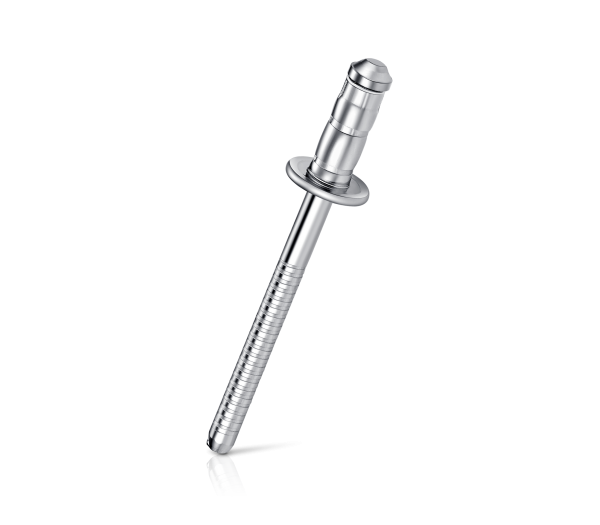

Multi-grip Blind Rivet
Multi-Grip rivets feature a wide grip range enabling a single grip to replace up to 3 lengths of standard blind rivets. The Grip's hole-filling rivet body expands within the application material for better joint integrity. The large blind-side closing head with locked mandrel core provides better support and improved sealing for weather resistance. Multi-grip rivets are available in three head styles. Material choices include Aluminum, Steel and Stainless Steel.
Multi grip rivets can be widely used in container,aluminum cases,Equipment cases.
Material
Body | Aluminum ( 5052) | Steel | Stainless Steel | |
Finish | Polished | Zinc Plated | Polished | |
Mandrel | Steel | Stainless Steel | Steel | Stainless Steel |
Finish | Zinc Plated | Polished | Zinc Plated | Polished |
Head Type | Dome, CSK, Large Flange | |||
D | DRILL NO. &HOLE SIZE | GRIP RANGE | L (MAX) | dk NOM. | K MAX | P |
INCH | MM | INCH | MM | |||
1/8" | #30 | 0.031-0.134 | 0.8-3.4 | 0.283 | 7.2 | 0.252" |
0.031-0.187 | 0.8-4.8 | 0.331 | 8.4 | |||
0.046-0.250 | 1.2-6.4 | 0.390 | 9.9 | |||
0.156-0.312 | 4.0-7.9 | 0.453 | 11.5 | |||
0.216-0.375 | 5.5-9.5 | 0.516 | 13.1 | |||
.250-0.437 | 6.4-11.1 | 0.610 | 15.5 | |||
5/32" | #20 | 0.020-0.125 | 0.5-3.2 | 0.283 | 7.2 | 0.312" |
0.046-0.250 | 1.2-6.4 | 0.390 | 9.9 | |||
0.125-0.312 | 3.2-7.9 | 0.453 | 11.5 | |||
0.156-0.375 | 4.0-9.5 | 0.516 | 13.1 | |||
0.250-0.437 | 6.4-11.1 | 0.610 | 15.5 | |||
0.250-0.500 | 6.4-12.7 | 0.681 | 17.3 | |||
3/16" | #11 | 0.062-0.250 | 1.6-6.4 | 0.421 | 10.7 | 0.386" |
0.079-0.315 | 2.0-8.0 | 0.492 | 12.5 | |||
0.125-0.375 | 3.2-9.5 | 0.587 | 14.9 | |||
0.187-0.437 | 4.8-11.1 | 0.610 | 15.5 | |||
0.250-0.500 | 6.4-12.7 | 0.681 | 17.3 | |||
0.345-0.590 | 9.0-15.0 | 0.783 | 19.9 | |||
0.500-0.781 | 12.7-19.8 | 0.992 | 25.2 |
