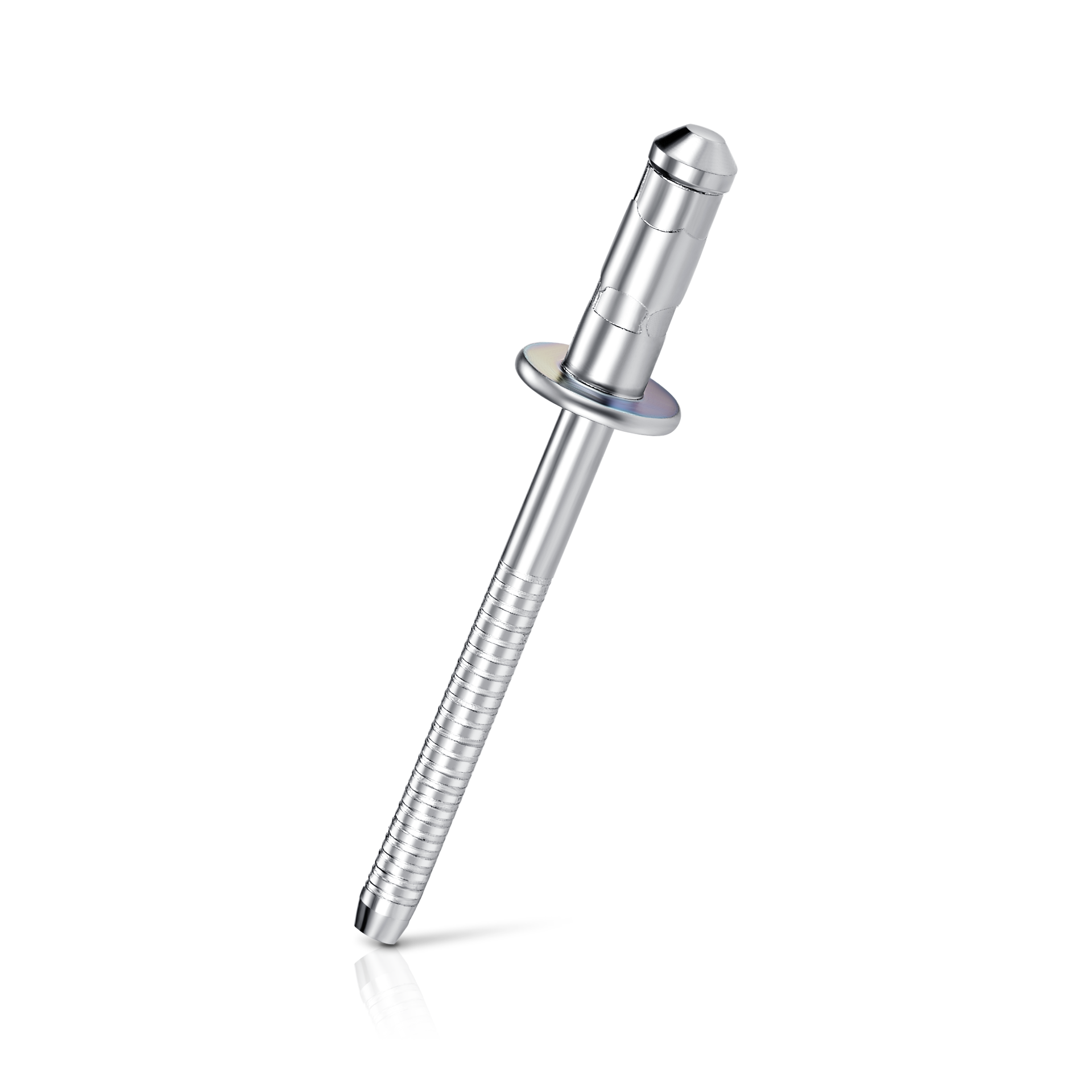

Hem-Lck Blind Rivet
Tapered mandrel head for quick and easy installation.
Unique bulbing system for superior blind side strength and increasing clamping force with workpiece.
Locking device on mandrel.Strengthen push-out force of mandrel and lock the rivet body tightly.
The mechanical properties are very high, the nail core and the riveting tube are firmly locked, and the contact area with the workpiece is effective to prevent slippage.
Material
Body | Aluminum 5056 | Steel | Stainless Steel |
Finish | Polished | Zine Plated | Polished |
Mandrel | Aluminum | Steel | Stainless Steel |
Finish | Polished | Zine Plated | Polished |
Head Type | Dome | ||
Size | Drill | L | Grip Range | dk | K | dm |
6.4 | 13.7 | 1.50-3.50 | 13.4 | 2.7 | 3.9 | |
15.0 | 2.80-4.80 | 13.4 | 2.7 | 3.9 | ||
15.6 | 3.35-5.35 | 13.4 | 2.7 | 3.9 | ||
17.0 | 4.80-6.80 | 13.4 | 2.7 | 3.9 | ||
19.0 | 6.80-8.80 | 13.4 | 2.7 | 3.9 | ||
19.7 | 7.50-9.50 | 13.4 | 2.7 | 3.9 | ||
21.0 | 8.80-10.80 | 13.4 | 2.7 | 3.9 | ||
23.0 | 10.80-12.80 | 13.4 | 2.7 | 3.9 |
