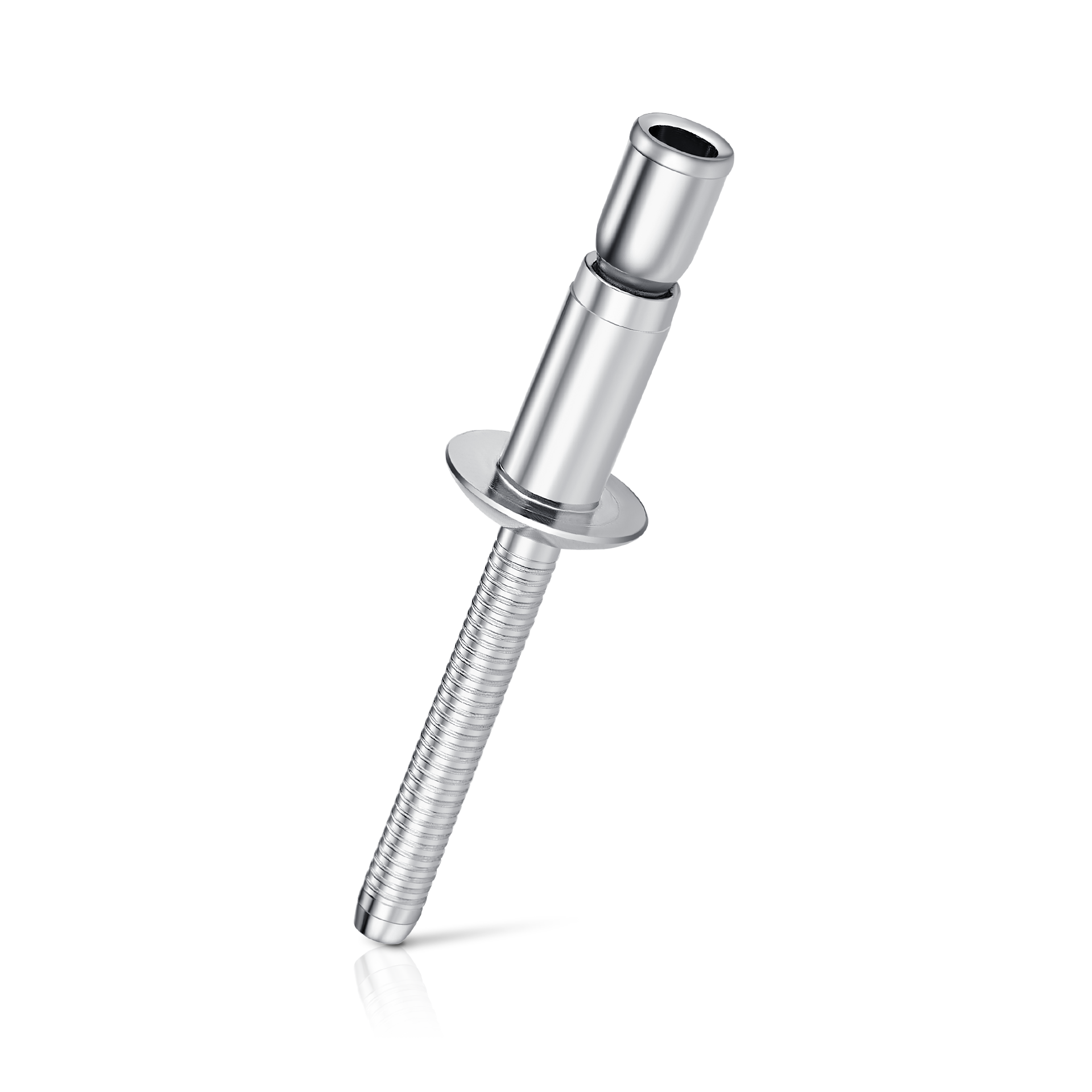

Mono-Lock Blind Rivet

Mono-Lock blind rivet is a new fastening parts, is a kind of metal link parts of being unique in construction and higher in jointing strength. After the rivet core of Monolock is pulled into rivet shaft, under the action of specialized rivet gun head – annulus-cut (protruded) gun head, the broken point of rivet core shall be upside down edges into the groove of rivet shaft to realize “mechanical outside locking” and lock the nail core. Monolock, better in fill-hole performance, good in air tightness and high in rivet jointing strength, is suitable for using in the fields with higher requirements on surfaces, rivet jointing strength and sealing performance.

Material

Body

Steel

Finish

Zine Plated

Mandrel

Steel

Finish

Zine Plated

Head Type

Dome, CSK, Large Flange


Size

Drill

L Max

Grip Range

dk max

K max

dm max

4.8
(3/16")


18.2

1.58-6.85

10.2

2.3

3.0

24.6

1.58-11.09

10.2

2.3

3.0

6.4
(1/4")


25.3

2.04-9.52

13.5

2.9

4.0

35.6

2.04-15.87

13.5

2.9

4.0
