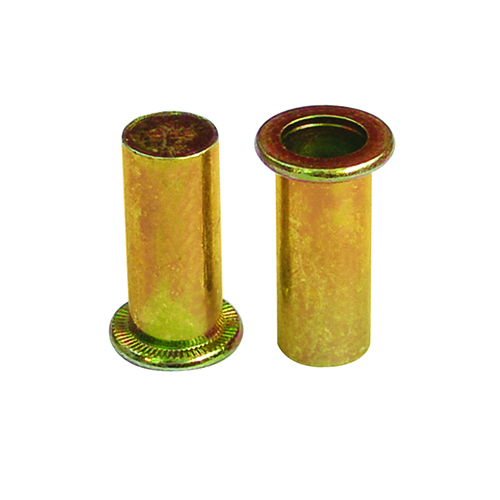

Flat Head Closed End Rivet Nut
CSK Head Rivet Nut

CSK Head Rivet Nut

Flat Head Closed End Rivet Nut

Flat Head Closed End Rivet Nut

Material: Aluminum, Steel, Stainless steel


CODE

Size
D

Grap Range
e

Length
h

d。
+0.15
+0.05

D
-0.03
-0.2

Dk
+0.30
-0.30

K
+0.20
-0.20

L
+0.30
-0.3

FM4B

FM4BR

M4

0.5～2.0

12.0

6

6

9

0.8

17.3

FM5B

FM5BR

M4

0.5～2.5

13.0

7

7

10

1.0

19.5

FM6B

FM6BR

M6

0.5～3.0

17.0

9

9

13

1.5

23.5

FM8B

FM8BR

M8

0.5～3.5

21.5

11

11

15

1.5

28.0

FM10B

FM10BR

M10

0.5～3.5

26.0

13

13

17

1.8

34.3
